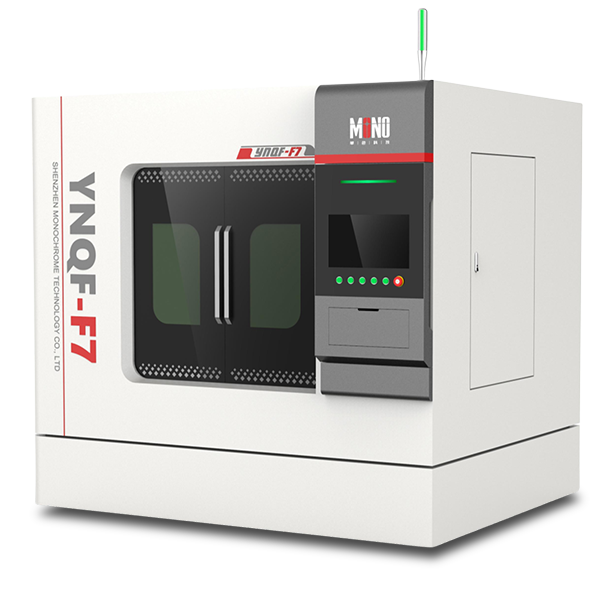

Femtosecond Laser Micro-etching Machine
Designed to meet the micron-level precision machining requirements of thin-sheet materials (no recast layer, no micro-cracks, no carbonization), this system specializes in ultra-precision cold processing of metals and non-metals.
Descriptions

Applied in aerospace, biomedical, semiconductor, consumer electronics and other fields. Suitable for ITO, FTO, zinc oxide, zirconium oxide, titanium oxide, nickel oxide NiOx, gold, silver, carbon powder and other conductive metals, oxide materials laser etching, can achieve high temperature alloys, metals, non-metals, especially composite materials surface microstructural machining, but also for the ultra-fine linewidth laser etching, scribing, groove for glass, silicon, zirconia ceramics and other materials.



Feature

1. Thermal Damage-Free Processing

     o Cold processing eliminates heat-affected zone (HAZ) common in conventional laser machining

     o Ensures zero recast layer, micro-crack free, and carbonization-free results


2. Thin Material Adaptability

     o Processes metal foils (copper/aluminum/stainless steel/nickel alloy) from 0.02mm to 0.3mm thickness

     o Compatible with flexible substrates (PI/PET) and semiconductor materials (silicon/sapphire)


3. Multi-Process Integration

     o Precision cutting

     o Surface structuring

     o 3D micro-etching



Specification

    Centre wavelength

    1030nm/515nm/343nm

    Working Travel

    350mm×350mm

    Positioning accuracy (X/Y/Z)

    ≤±1μm/≤±1μm/≤±5μm

    Minimum Kerf Width

    3μm / ≤5μm / ≤10μm / ≤20μm(Customizable)

    Cutting Dimension Accuracy

    ≤±2μm @180mm×180mm working area

    Minimum Feature Width

    3μm

    arge-Area Cutting Stitching Accuracy

    ≤±1μm

    Overall Machining Accuracy

    ≤±

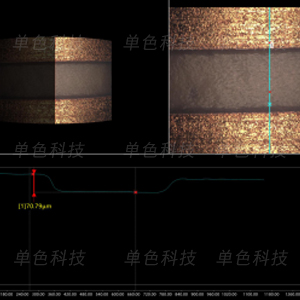

Showcase
