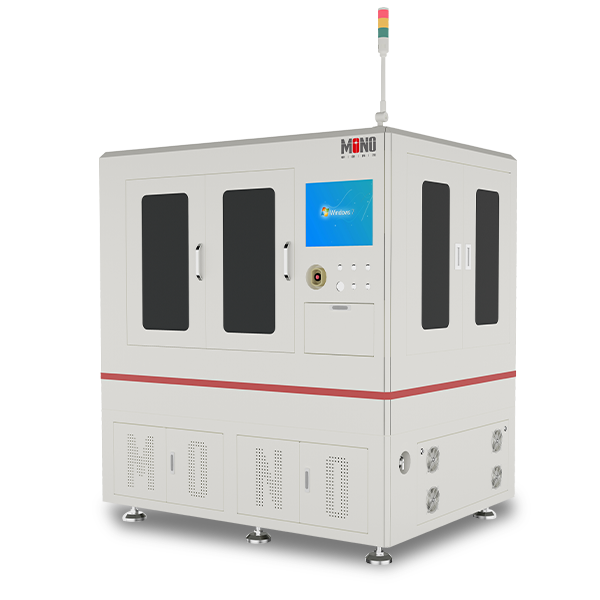

Femtosecond laser ultra-precision tube cutting machine (single machine)

Applied to aerospace, biomedical, semiconductor, consumer electronics and other fields, suitable for aluminium foil, stainless steel foil, nickel alloy foil and other materials micro-fine precision non-destructive processing, implantable, interventional cutting of various types of metal, non-metal. As well as flexible PI, PET, glass, silicon substrate precision laser scribing, grooving, etching and other precision processing.

Contacts 

Descriptions

Using imported lasers, mainly for all kinds of processing needs (no recast layer, no micro-cracks, no carbonisation) developed by the precious metal precision close tube special equipment.

Feature

Adopting femtosecond laser, ultra-short pulse processing with almost no heat conduction, ultra-fast laser and material action with very small impact force, very small thermal effect, ultra-fine and efficient cold processing mechanism, suitable for high-speed cutting of any organic & inorganic materials;

The cutting surface is neat, burr-free, no recast layer, no micro-cracks and metallurgical defects;

Higher single pulse energy, higher machining accuracy, fine machining of almost any solid material;

Non-selective and stress-free for materials.

Specification

Technical parameters	Model number
Lasers	Femtosecond laser
centre wavelength	1030nm/343nm
Output power stability	≤ 0 .5% RMS @ 24 hours
Repeat Positioning Accuracy	X : s+2 um ; Y : s2 um ; Z : +2 um ; A : s+2arc sec
Diameter/wall thickness of tubular parts	Diameter 0.2 mm~5 mm/Wall Thickness T=0.02 mm~0.3 mm
Length of tubular parts	800 mm
Minimum cutting line width	≤ 20 um
Comprehensive machining accuracy	±10 um
Power supply specifications	Single-phase 220 V±10%;50 HZ
Equipment power	7 kW /4 kw
Environmental requirements	Ambient Temperature:22±3°C;Relative Humidity: 55%10%

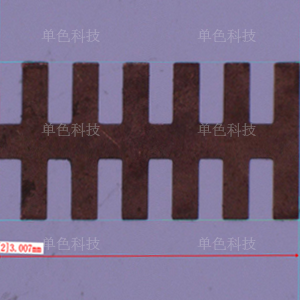

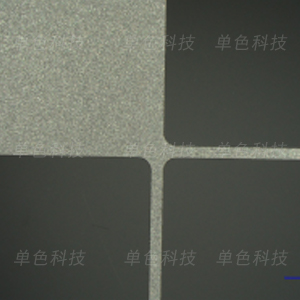

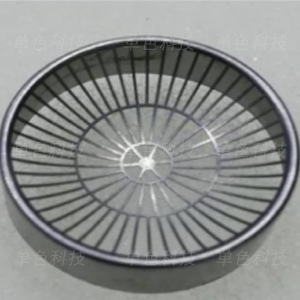

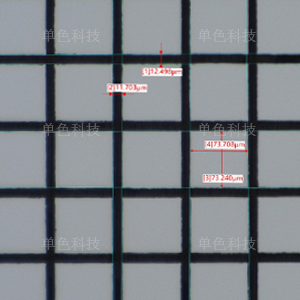

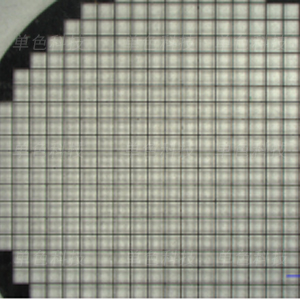

Showcase
