Metal Mold Etching: Why Femtosecond Lasers Are the Best Choice?

As the cornerstone of modern industry, the precision, durability, and surface properties of metal molds directly determine the quality and performance of final products. Traditional machining methods face significant challenges when dealing with micro-nano scale features and "zero-defect" surface requirements. How do femtosecond lasers address these mold machining challenges?

Mold Etching: Femtosecond Lasers vs. Traditional Machining

1. Thermal Damage and Surface Defects

Traditional thermal machining (e.g., EDM) often leaves a heat-affected zone (HAZ) and recast layer on metal surfaces. This not only compromises mold lifespan but also results in poor surface quality, requiring extensive and time-consuming post-polishing. Femtosecond lasers, with their unique "cold machining" properties, fundamentally eliminate thermal damage, delivering defect-free, high quality surfaces—greatly simplifying or even eliminating the need for polishing.

2. High-Hardness Materials and Tool Wear

When processing common high-hardness materials like steel and cemented carbide, traditional CNC milling suffers from severe tool wear and edge chipping, leading to high costs and low efficiency. As a non-contact machining method, femtosecond lasers efficiently process metals of any hardness without any tool or electrode wear.

3. Breaking Through Precision and Geometric Limitations

The physical dimensions of traditional tools (cutters, electrodes) restrict the minimum machinable features (e.g., micro-holes, fine grooves) and inner corner radii, making it difficult to achieve truly complex 3D fine structures. They often produce burrs that require additional processing. Femtosecond lasers, leveraging extremely small focused spots and precise control, achieve sub-micron-level ultra-precision, enabling sharp edges and complex geometries with minimal burr formation during machining.

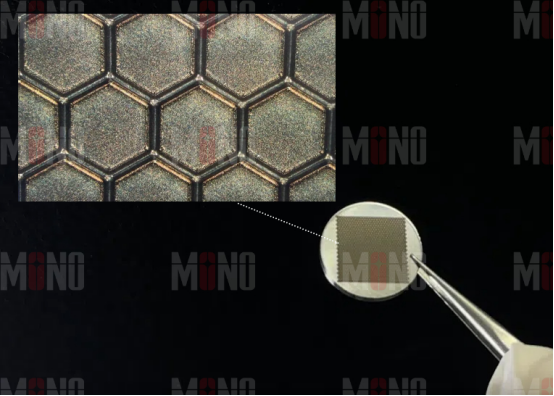

MONO LASER’s Hexagonal Honeycomb Structure Etching: No Thermal Damage, High Precision, One-Step Forming

Why Choose Femtosecond Lasers?

"Sculpt" Any Complex Structure You Envision

Femtosecond lasers excel in manufacturing nanoscale functional textures on metal mold surfaces, precisely "sculpting" any complex topography you imagine—such as bumps, grooves, and hexagonal honeycomb structures—with unmatched accuracy.

High-Precision 3D Microstructure Machining

The high precision and flexibility of femtosecond lasers enable micron- to sub-micron-level fine cavities, micro-hole arrays, sharp edges, and complex 3D topographies on hard materials like mold steel and cemented carbide, meeting the demands of precision stamping, injection molding, and die-casting molds. Relying on self-developed femtosecond laser equipment, MONO LASER achieves large-area, high-efficiency machining of these complex structures on metal molds, satisfying industrial production requirements.

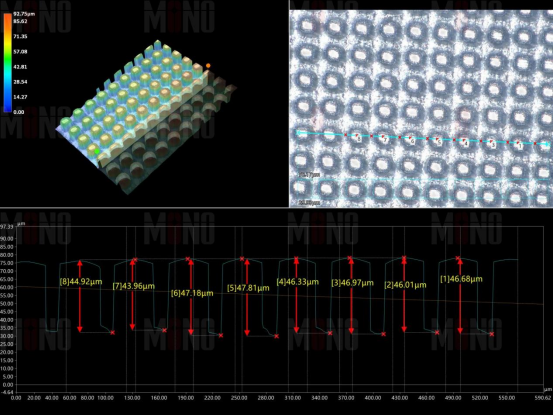

structure Etching of Bumps and Platforms: Accuracy ±3μm, Ra ≤0.4μm

High Purity, Enhanced Superhydrophobic Performance

Unlike external coatings that are prone to wear and potential product contamination, femtosecond lasers utilize ultra-short pulses (≤100 femtoseconds). Their extremely brief interaction time ensures energy is applied before heat can conduct through the metal, virtually eliminating heat-affected zones (HAZ), molten recast layers, or micro-cracks. For metals such as stainless steel, titanium (Ti), aluminum (Al), copper (Cu), and nickel (Ni), femtosecond lasers directly induce self-organized micro-nano rough structures on the surface. This avoids contamination, delamination, or durability issues caused by chemical additives or coatings, making it ideal for molds requiring extreme purity in medical applications.

Femtosecond laser technology constructs micro-nano composite hierarchical structures on molds to regulate the surface wettability of final products. Treated metal surfaces can transform from initially superhydrophilic to stable superhydrophobic states. This enables the direct formation of functional surfaces with excellent demolding properties, self-cleaning, anti-adhesion, waterproofing, and even metal anti-corrosion on molds. It is particularly suitable for:

· Medical devices (e.g., instruments requiring precise fluid control or resistance to biological fouling)

· Industrial scenarios such as metal anti-corrosion, semiconductor anti-wetting, and polymer surface wetting enhancement

Comparison of droplets on an untreated surface (middle) versus two treated surfaces with different hierarchical structures.

（Femtosecond laser manufacturing of highly hydrophobic hierarchical structures by combining surface microstructures and LIPSS," Lasers in Manufacturing Conference 2015）

MONO LASER’s femtosecond laser micro-nano manufacturing solutions empower customers to develop innovative products by delivering unmatched machining accuracy and surface functionality. If you have processing needs, contact us for detailed technical insights and experience the extraordinary capabilities of femtosecond lasers firsthand.
